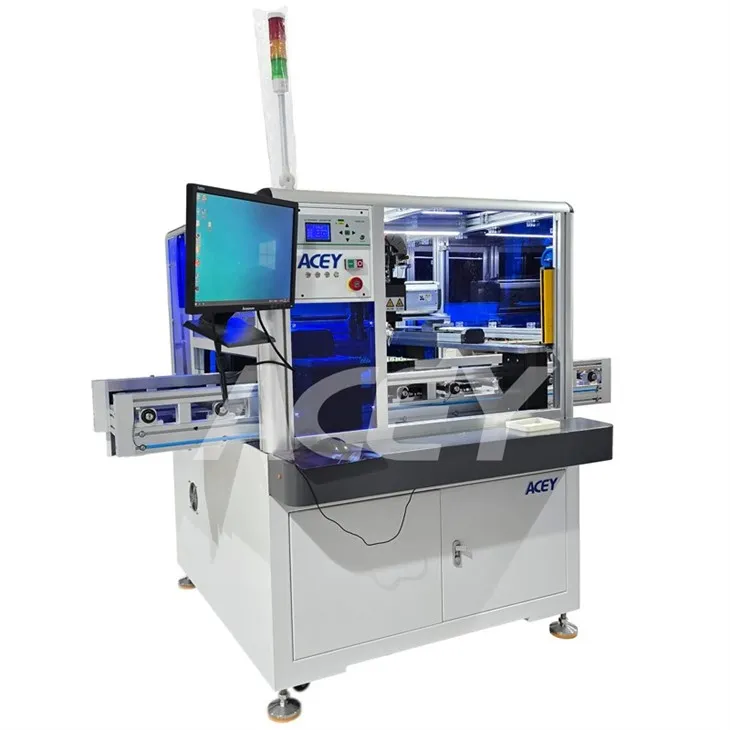

Automatic Ultrasonic Aluminum Wire Bonding Machine

As the first domestically developed automatic ultrasonic heavy aluminum wire welding machine adopting the rotary welding head design, the ACEY-3753A is equipped with a digital ultrasonic system featuring automatic frequency tracking, digitally controlled pressure adjustment, a top-tier image recognition device, and a fully closed-loop motion control circuit. It breaks new ground by realizing complete automation for heavy aluminum wire bonding machines made in China.

• ACEY-3753A is mainly engineered for welding 18650 Tesla batteries, 26800 lithium batteries, prismatic batteries, and other comparable products.
• Integrated with cutting-edge image recognition and automatic positioning technologies, the machine enables accurate and automated alignment of welding joints. Boasting a high-performance digital ultrasonic system, it ensures stable and reliable solder joint quality. Meanwhile, the automatic frequency-tracking ultrasonic module and refined welding head design work to further optimize welding results. Its exclusive digital pressure control system sustains consistent pressure output, thus guaranteeing uniform solder joint quality throughout the entire production process.
• Key features of the machine include a high-precision mechanical transmission structure, a reliable industrial computer, and independently developed software-all collaborating seamlessly to achieve outstanding welding position accuracy. It is also equipped with multiple fault detection and automatic shutdown capabilities, addressing situations such as welding failures and abnormal wire feeding. These protective measures not only drastically lower defect rates and increase production capacity but also enhance the machine's operability and user-friendliness.
• Featuring a computer-controlled English operation interface, new operators can attain independent operational capability after just one day of training and become fully proficient within a month. Furthermore, one operator can oversee multiple machines at the same time, resulting in a significant improvement in overall work efficiency.

1. The workflow of the machine is as follows: manual loading at the front-end station → automatic identification and positioning → automatic bonding → manual unloading (with workpieces flowing into the back-end station).
2. This assembly machine is exclusively designed for the bonding production of battery products specified by the customer and is not a universal-type equipment.Should there be a need to adapt it for other products, modifications must be made based on actual circumstances before it can be put into use.
3. The machine is mainly composed of a frame assembly, an XYZC feeding assembly, an automatic feeding mechanism, a wire feeding mechanism, a jig positioning and pressing assembly, a welding head mechanism, and a control console.The XYZC module adopts a precision ball screw drive, boasting a distance repeat positioning accuracy of less than ±0.02mm and an angle positioning accuracy of ±1°.
4. The control system employs an industrial computer + motion control card configuration to drive the servo motors. The equipment features easy operation and maintenance, a user-friendly control interface, and digital parameter setting, offering enhanced flexibility.
5. Equipped with quick clamps for workpiece clamping and a one-button start function, it enables personnel to load and unload materials easily and safely.Supporting left-in and right-out online multi-section track transmission, the machine can be directly integrated into the production line for seamless operation.

1. Power supply: 220VAC±10%, 50Hz, reliable grounding, the maximum consumption rate is about 1200W
2. Ultrasonic power: 0~30W, automatic switching between first and second welding
3. X-axis adopts imported parts-repeat positioning accuracy can reach ±0.02mm, Y and Z-axis adopt precision ball screw drive
4. Weldable aluminum wire diameter: 125~ 500um (5~20mil)
5. Working area: XY axis maximum: 400 × 400 (can be customized according to customer requirements)
6. Z axis: max 100mm. C axis: plus or minus 180°
7. Ultrasound time: 10~500ms, multi-channel
8. Welding pressure: 50~1200g, multi-channel
9. Welding angle: ±90 degrees
10. Vision system: PR microscope magnification is 0.5 times
11. PR lighting lamp: white light, adjustable brightness
12. Overall dimensions: about 1500*2200*1650MM(L*W*H)
13. Weight: about 800KG
