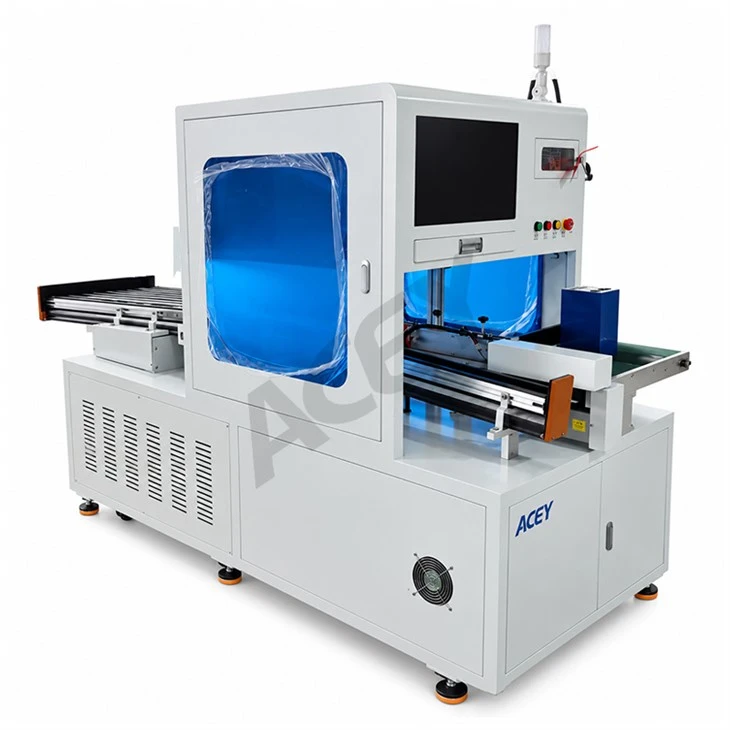

6 Channels Prismatic Battery Sorting Machine
Product Description
ACEY-PS6 Prismatic Battery 6 Channels Automatic Sorting Machine is designed for sorting and matching prismatic battery cells in battery manufacturing and pack assembly. It integrates belt conveyor feeding, automatic testing, result-based sorting, and collection, with a front infeed and rear outfeed layout for convenient material handling. The machine features 5 OK channels and 1 NG channel to separate qualified batteries from defective cells according to configured sorting criteria. It also supports test data analysis and storage, with optional internal resistance testing and MES integration for battery identification, data traceability, and production quality management.
Product Features
1. Automated Sorting Workflow: Integrates battery feeding, testing, sorting, and collection to reduce manual handling.
2. Flexible Sorting Configuration: Uses five qualified-product channels and one defective-product channel to support batterygrouping and NG separation.
3. Belt Conveyor Feeding: Drives battery feeding through a belt conveyor, with a front infeed and rear outfeed arrangement.
4. PLC and Linear Module Control: Coordinates equipment movements and sorting operations through the control system.
5. Battery Data Management: Supports test data analysis and storage for reviewing sorting results.
6. Optional Internal Resistance Tester: Adds internal resistance measurement when required by the production process.
7. Code Identification: Supports QR code and barcode scanning for battery identification.
8. MES Communication Option: Supports integration with a factory MES system for recording battery codes and test data andgenerating SPC reports.
9. Defined Operating Environment: Operates under the specified ambient temperature, humidity, air pressure, and power supplyconditions.
Main technical parameters
| Number of Sorting Channels | 6 Channels |
| Feeding Method | Front Infeed and Rear Outfeed |
| Feeding System | Belt Conveyor |
| Control System | PLC Control System + Linear Module |
| Loading Method | Manual Loading |
| Testing Method | Automatic Testing |
| Internal Resistance Testing | Optional |
| Code Scanning | QR Code, Barcode, and Other Codes |
| Test Data Management | Test Data Analysis and Storage |
| MES System Interface | Optional |
| MES Data Functions | Battery QR Code and Test Data Recording, SPC Analysis Reports |

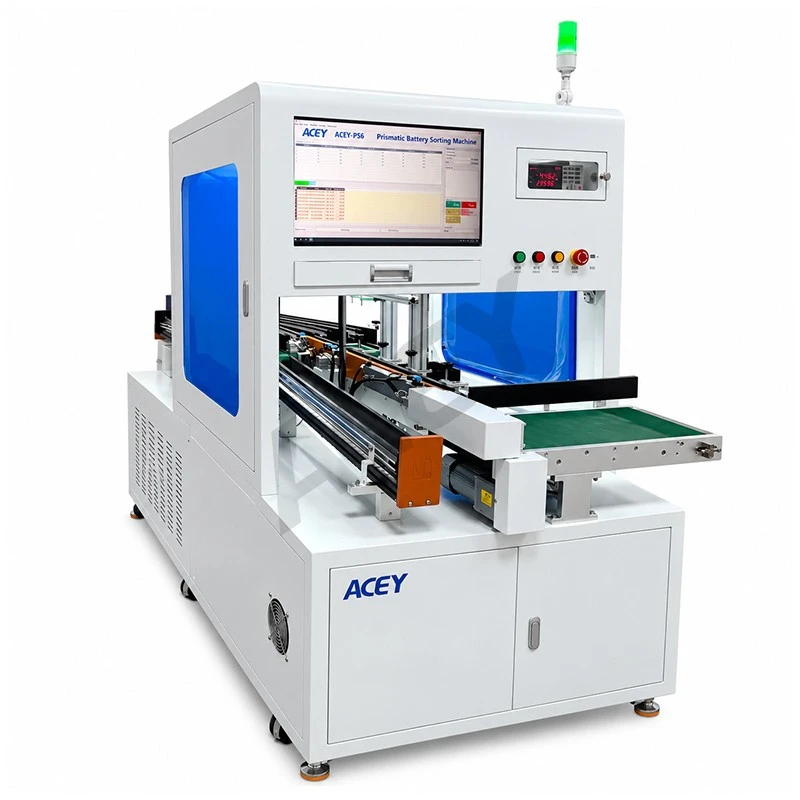

Product Details
FAQ
Q: What types of battery cells can this sorting machine handle?
A: ACEY-PS6 is designed for sorting and matching prismatic battery cells used in battery manufacturing and battery pack assembly.
Q: How many sorting channels does this machine have?
A: ACEY-PS6 features 6 sorting channels, including 5 OK channels for qualified cells and 1 NG channel for defective cells, according to configured sorting criteria.
Q: Can this machine connect to a MES system for battery data traceability?
A: ACEY-PS6 supports optional MES integration, QR code and barcode scanning, and test data recording. With the corresponding functions configured, it can support battery identification, test data traceability, and SPC report generation.
