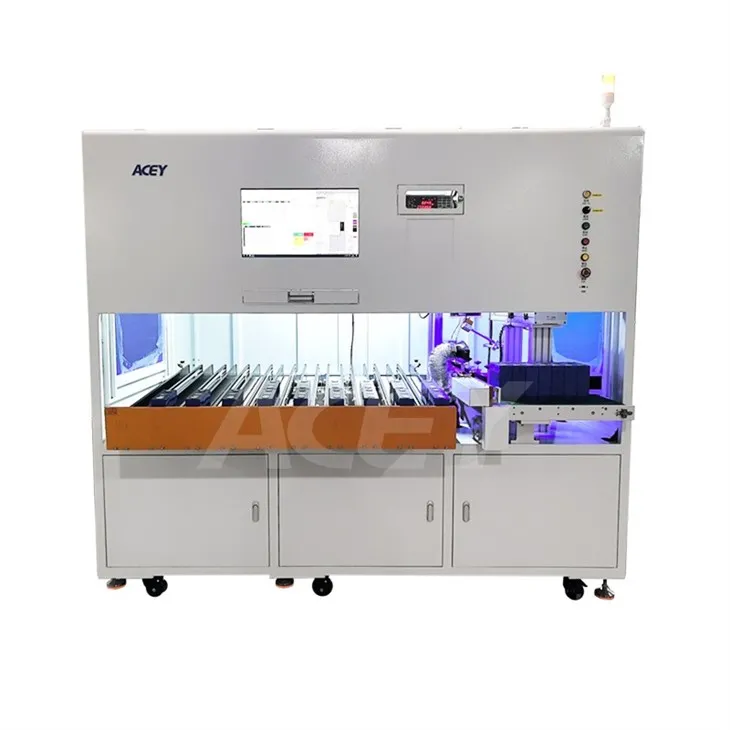

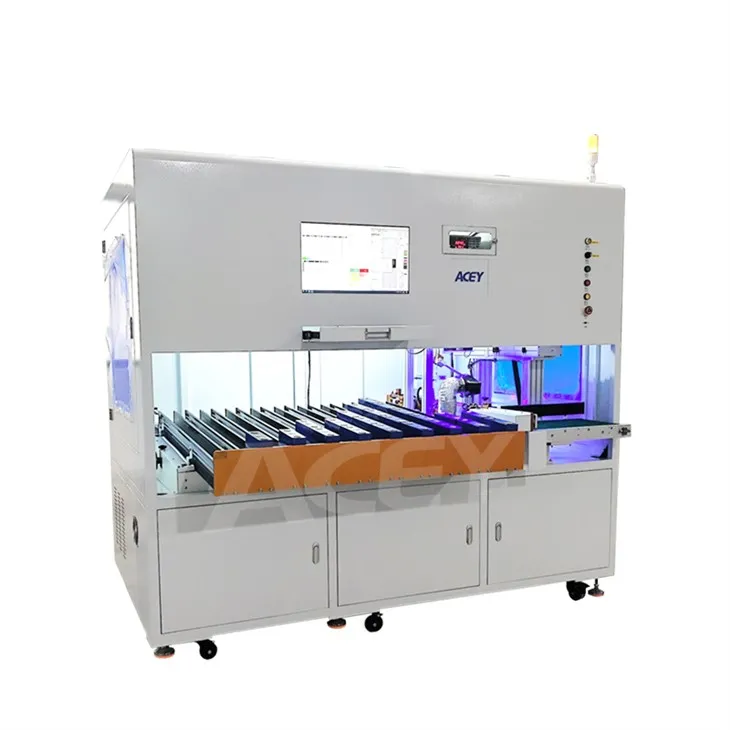

10 Channels Prismatic Lithium Battery Sorting and Laser Cleaning Machine
Product Description
The ACEY-PSLC10 is an automatic prismatic battery sorting machine suitable for sorting and assembly testing of prismatic batteries, as well as performing laser cleaning prior to laser welding. The unit employs belt‑driven feeding, making battery changeover straightforward. It analyzes and records prismatic battery test data, accurately eliminates defective cells, and gathers qualified batteries into receiving slots through sorting and matching. The system is designed for easy operation and management by personnel.
Specification
| Parameter | Specification |
| Compatible Dimensions (L × W × H) | 90–300 mm × 12–85 mm × 90–300 mm |
| Sorting Channels | 9 OK channels + 1 NG channel |
| Control System | PLC control system + linear module |
| Laser Cleaning Function | 200W MAX pulsed laser source |
| Loading & Testing | Integrated manual loading and automatic testing (optional internal resistance tester: Hope & Hioki) |
| Code Scanning Function | Integrated QR code / barcode scanning (optional: Hikvision & Keyence) |
| Sorting Process | Fully automated - reduces manual intervention |
| MES System Interface | Optional; real-time recording of battery QR code info and test data, generates SPC analysis reports |
| Max Sorting Speed | Approx. 10–12 PPM (more than 3× manual sorting efficiency) |
Product Details
