8 Channel Prismatic Battery Cell IR Sorting Machine

Item Name: Prismatic Battery Sorting Machine
Item No.:ACEY-PS8S
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance

Send Inquiry

8 Channel Prismatic Battery Cell IR Sorting Machine for sale

Product Description

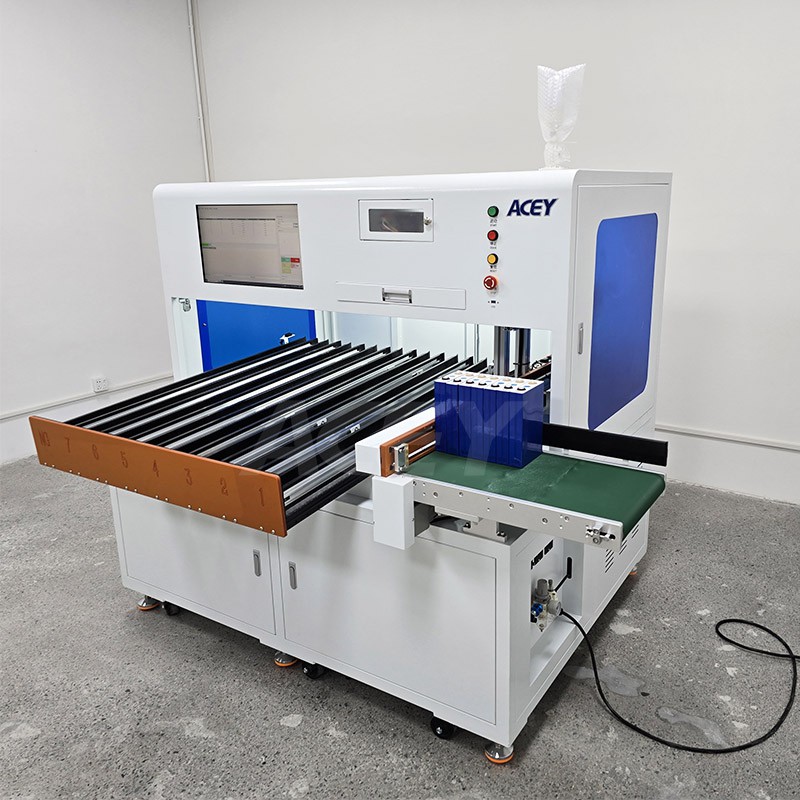

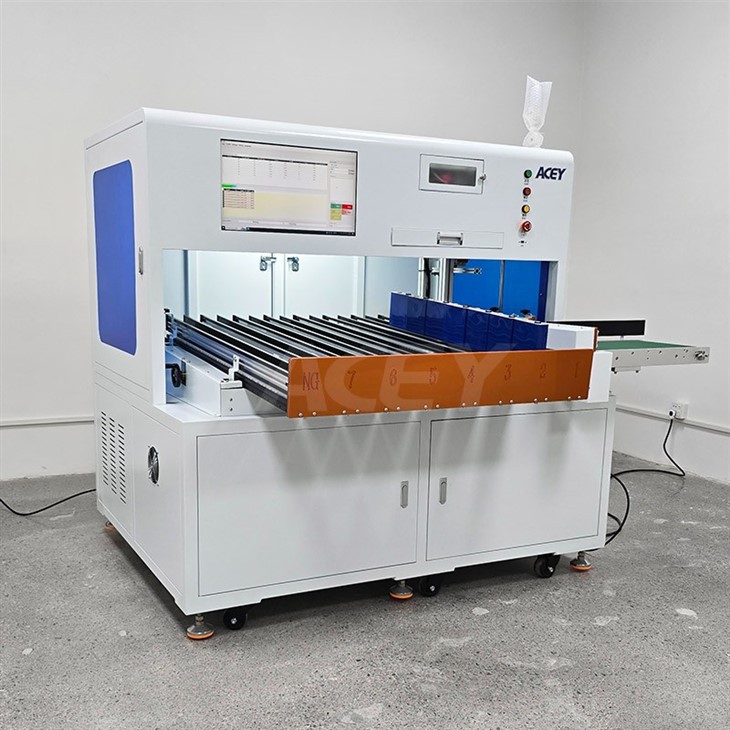

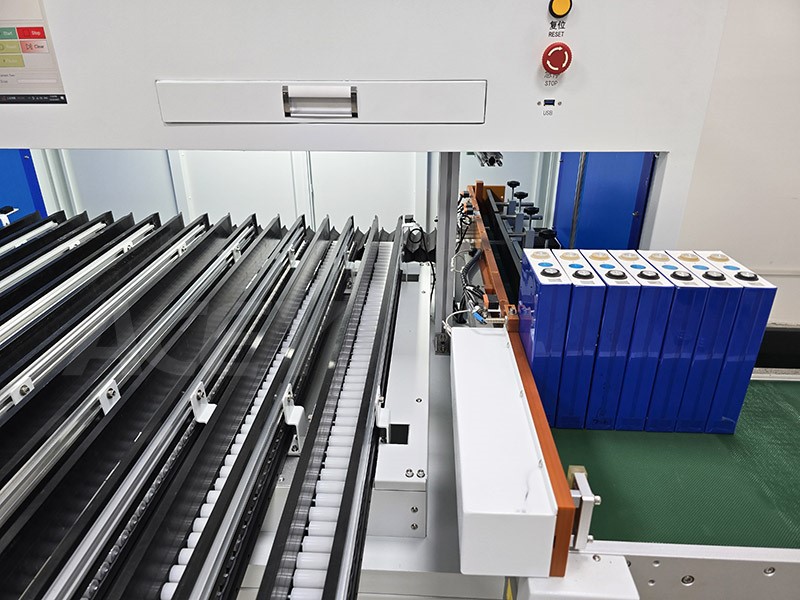

The ACEY-PS8S This automatic battery sorting machine is designed for sorting and assembly testing of a wide range of prismatic batteries. It features a belt‑driven feeding mechanism that allows for simple and quick type changeovers. The system analyzes and stores prismatic battery test data, automatically rejects defective cells, and places qualified batteries into collection trays through precise sorting and matching. Its user‑friendly design supports efficient operation and streamlined management.

Specification

1. Compatible battery dimensions: length 90–300 mm, width 12–85 mm, height 90–300 mm.
2. Equipped with 7 OK channels and 1 NG channel for efficient product sorting.
3. Control system: PC control system combined with linear modules.
4. Supports manual loading and automatic testing (optional internal resistance tester).
5. Integrated code scanning function for QR codes, barcodes, and other identifiers.
6. Fully automated sorting process significantly reduces manual intervention.
7. Optional MES system interface enables real‑time recording of battery QR code information and test data, and generates SPC analysis reports.
8. Maximum sorting speed reaches 1,000 pieces per hour, more than three times the efficiency of manual sorting.
