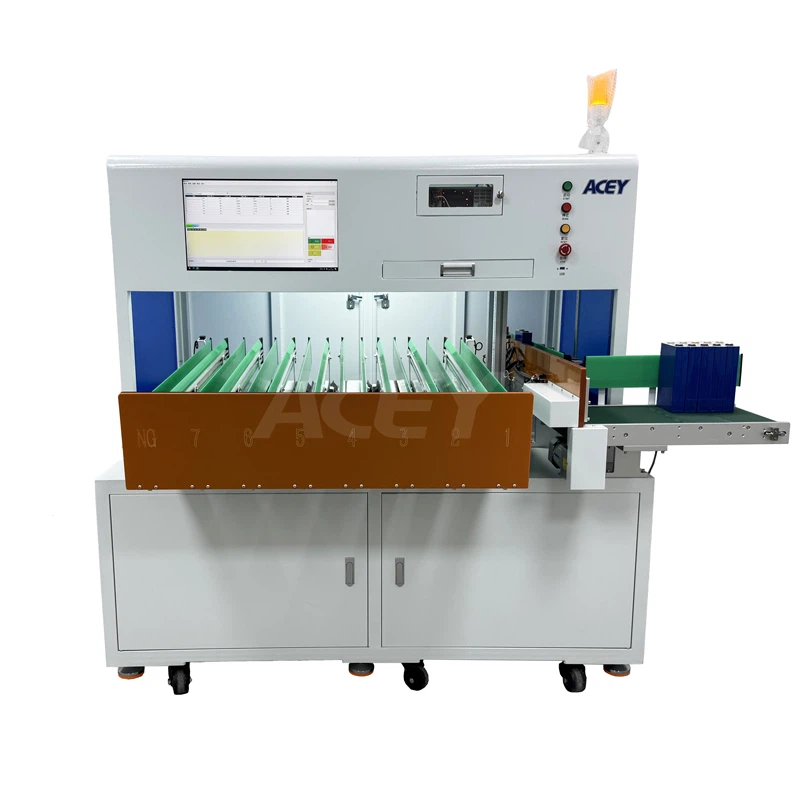

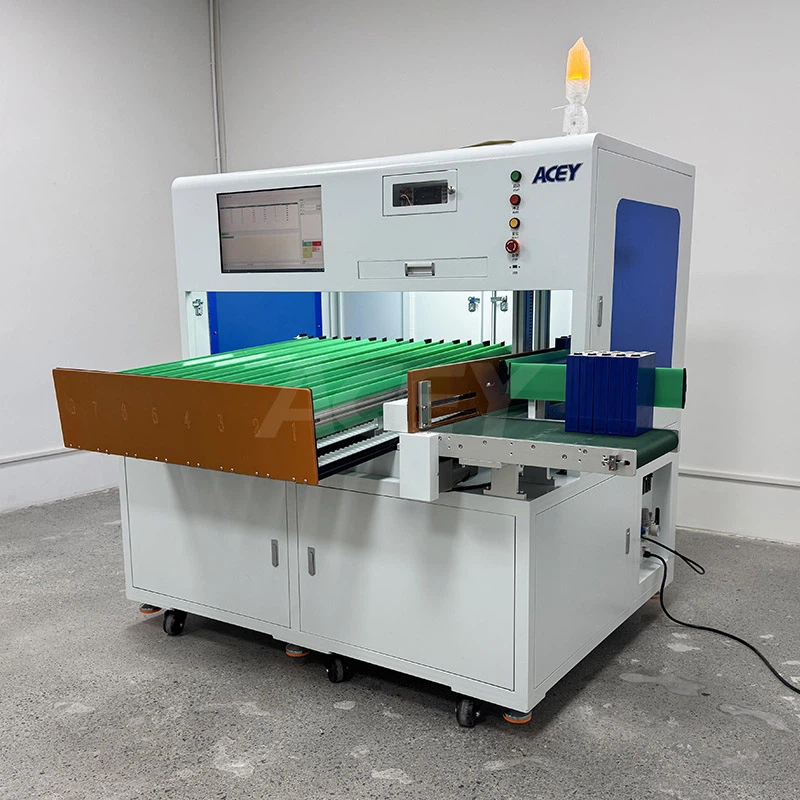

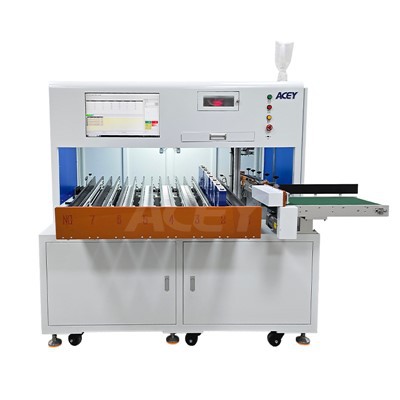

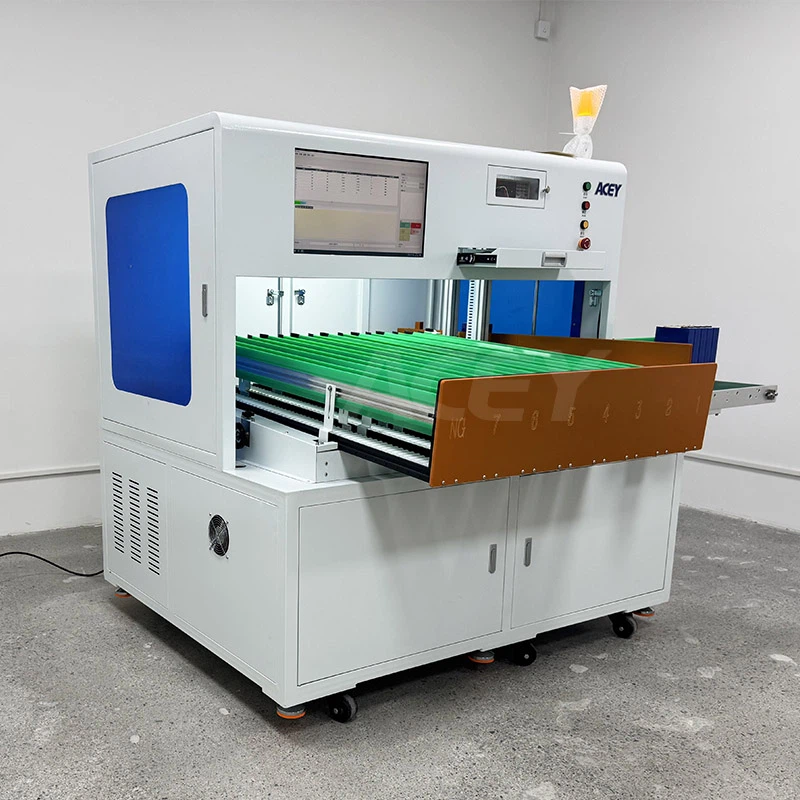

8 Channel Intelligent Lithium Cell Sorting Machine for Prismatic Battery Production Line
Product Description
The ACEY-PS8 is an advanced 8-channel automatic prismatic battery sorting machine, designed for efficient sorting, grading, and assembling of lithium battery cells. It is widely used in battery pack production lines to ensure consistency and quality control.
The system adopts a belt-driven feeding mechanism combined with a PC control system, enabling stable operation and easy product changeover. It supports automatic testing of battery voltage and optional internal resistance, allowing accurate classification and elimination of defective cells
Features:
- 8-channel design (7 OK + 1 NG channel)
- High-speed operation up to 1000 pcs/hour
- Integrated voltage testing and optional internal resistance testing
- Barcode/QR code scanning for data tracking

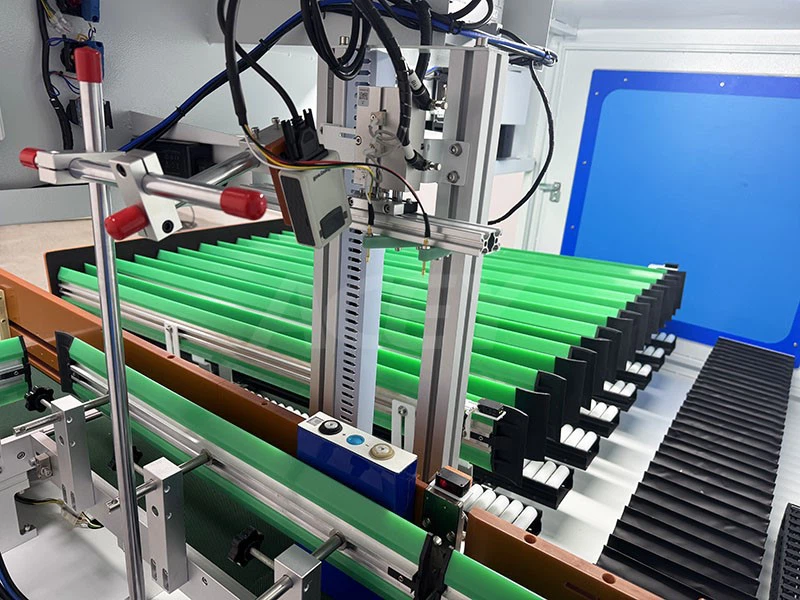

- Stable belt conveyor feeding system
- Easy operation and low maintenance
Specification
| Item | Specification |
|---|---|
| Model | ACEY-PS8 |
| Application | Prismatic lithium battery sorting & assembling |
| Sorting Channels | 7 OK channels + 1 NG channel |
| Compatible Battery Size | Length: 90–300 mm Width: 12–85 mm Height: 90–300 mm |
| Sorting Speed | Max. 1000 pcs/hour |
| Control System | PC + Linear Module |
| Feeding Method | Belt conveyor feeding |
| Testing Function | Voltage testing (standard) Internal resistance testing (optional) |
