Single Sided Automatic Battery Spot Welder for Cylindrical Battery Pack
Product Description

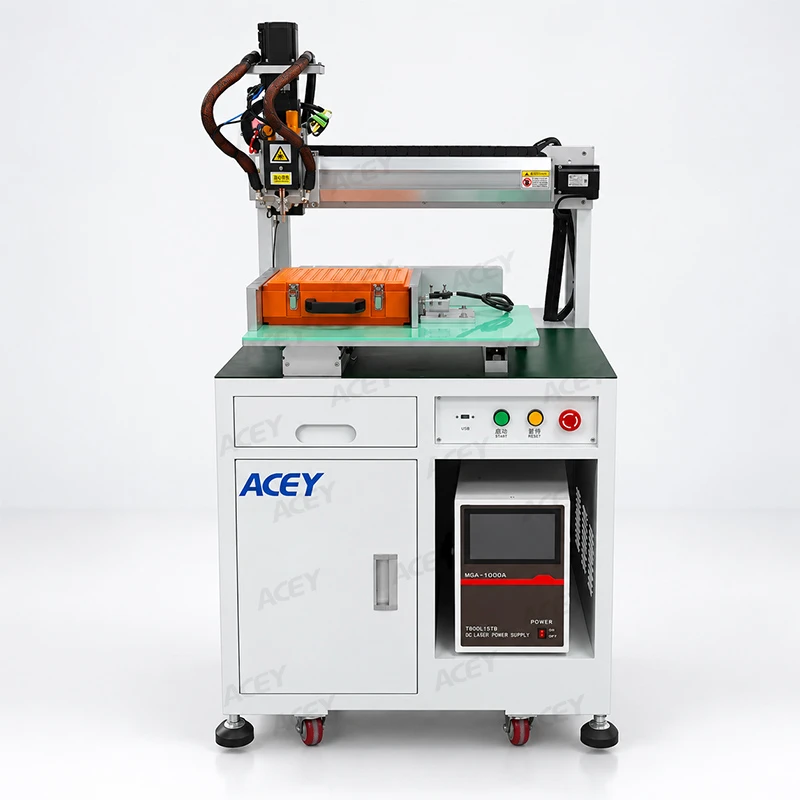

ACEY-GS200A Single-Sided Automatic Spot Welding Machine is designed for series and parallel spot welding of lithium battery cells during battery pack assembly. Equipped with precision servo-driven actuators, it supports consistent welding operations. Its modular electrical control system simplifies maintenance, while AutoCAD data import and array and manual welding modes offer flexible programming options for different welding requirements. The machine is suitable for spot welding processes at battery pack assembly stations.
Product Features
- Wide cell compatibility - Welds lithium cylindrical cells including 14500, 18650, 21700, 26650 and 32700, with module capacity up to X 400 × Y 300 × Z 200 mm.

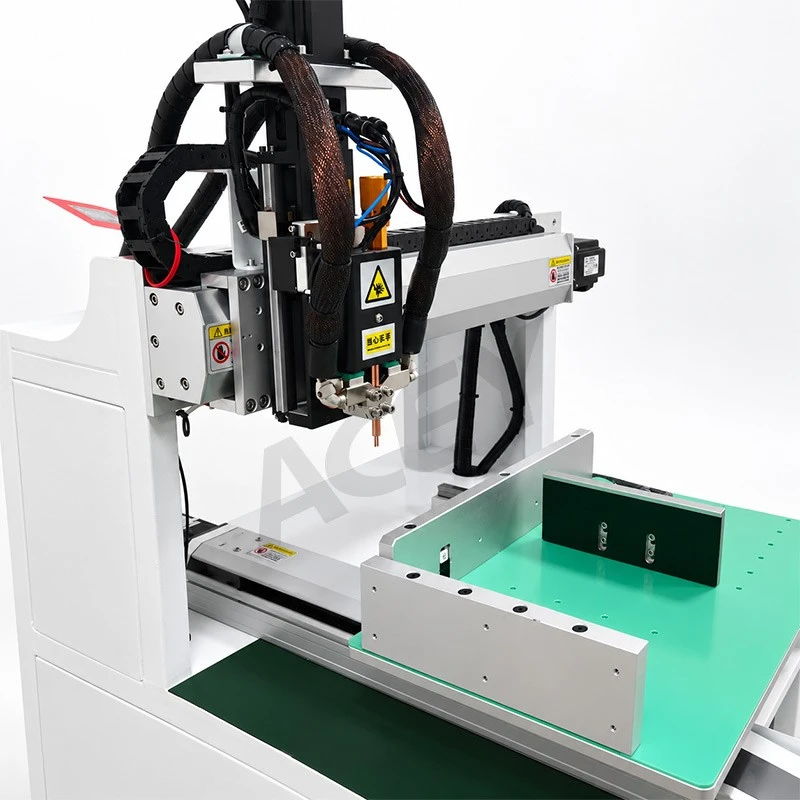

- Servo-driven precision - Three-axis welding platform powered by servo motors and a motion controller for accurate, repeatable welds.

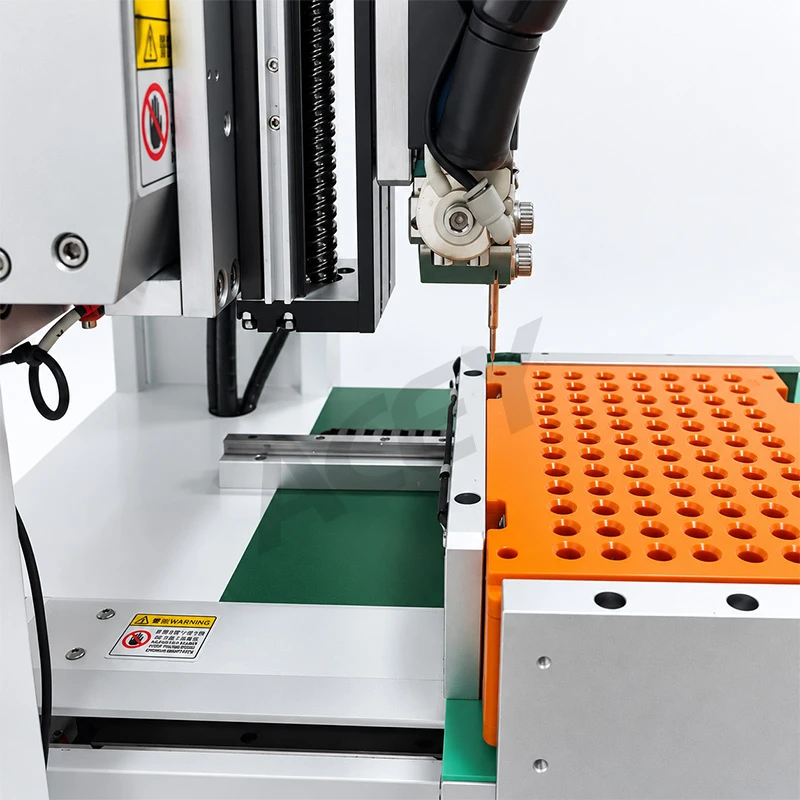

- Multi-point welding modes - Switchable single-, double- and triple-point welding with adjustable point spacing for flexible cell layouts.
- Smart weld quality monitoring - Tracks and records splash, false and missed welds, with a welding current monitor and cold-weld alarm to prevent defects.
- CAD-programmable & efficient - AutoCAD data import plus array and manual programming for fast changeover and higher output.

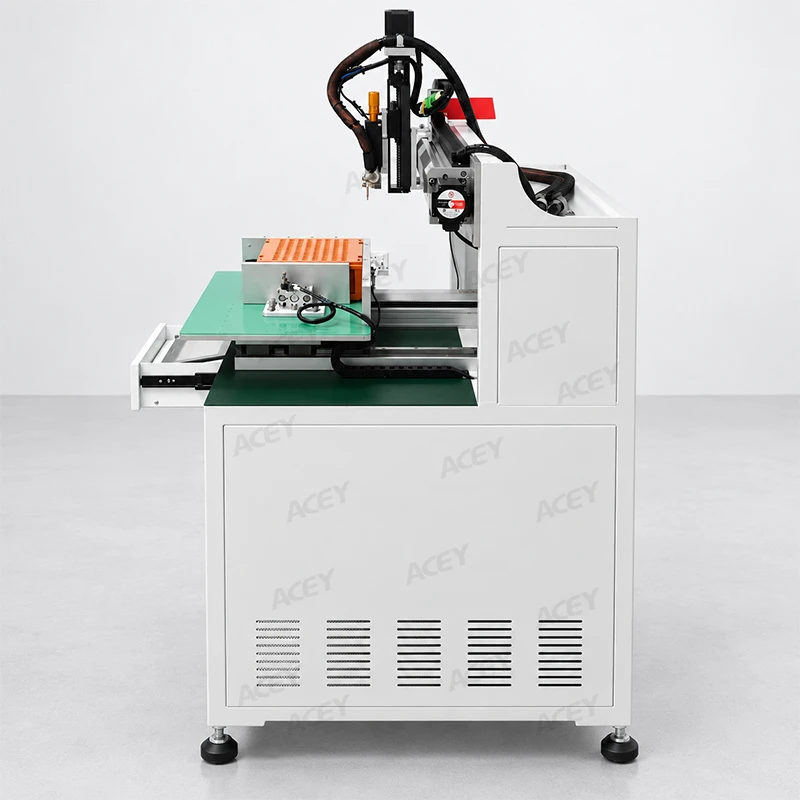

- Easy, quiet & robust - Weintek touchscreen operation (≤80 dB), computer-white cabinet L700 × W700 × H1500 mm, ~270 kg, total power ≤1.5 kW.
Specification
| Performance Specifications | |
| Applicable Battery Cells | Cylindrical lithium battery cells, including 14500, 18650, 21700, 26650, 32700, and other compatible sizes |
| Compatible Module Dimensions | X: 0–400 mm; Y: 0–300 mm; Z: 0–200 mm |
| Motion Control System | Motion controller |
| Welding Monitoring Functions | Weld point tracking, spatter monitoring, false weld monitoring, and missed weld monitoring and recording |
| Welding Current Monitoring | Real-time welding current monitoring with cold weld and false weld alarms |
| Welding Modes | Single-point, double-point, and triple-point welding |
| Weld Point Spacing Adjustment | Adjustable spacing between weld points in double-point and triple-point welding modes |
| Cooling Method | Forced-air cooling |
| Operation | User-friendly operation |
| Operating Environment Requirements | |
| Ambient Temperature | 5°C–35°C |
| Relative Humidity | 20%–90% |
| Air Supply Pressure | 0.4–0.6 MPa |
| Power Supply | 220 V, 50/60 Hz |
| Floor Load Requirement | ≤200 kg/m² |
| Grounding Type | Direct grounding |
| Site Requirements | Free from contamination and strong electromagnetic interference |
| Installation Environment | Level surface, free from vibration and shock |
| Operating Noise | ≤80 dB |
| General Equipment Specifications | |
| Overall Dimensions (L × W × H) | 700 × 700 × 1,500 mm (subject to the actual equipment) |
| Equipment Weight | Approx. 270 kg |
| Cabinet Color | Computer white; customizable upon request |
| Total Power Consumption | ≤1.5 kW |
Product Details
Q: What size battery module can it handle?
A: ACEY-GS200A Battery Spot Welding Machine welds modules up to X 400 mm × Y 300 mm × Z 200 mm.
Q: Can it weld single, double and triple points?
A: Yes. ACEY-GS200A Battery Spot Welding Machine supports single-, double- and triple-point welding, and the distance between points is adjustable.
Q: What kind of welding current and cooling does it use?
A: ACEY-GS200A Battery Spot Welding Machine is equipped with a welding current monitoring system and uses forced air cooling for stable, continuous operation.
