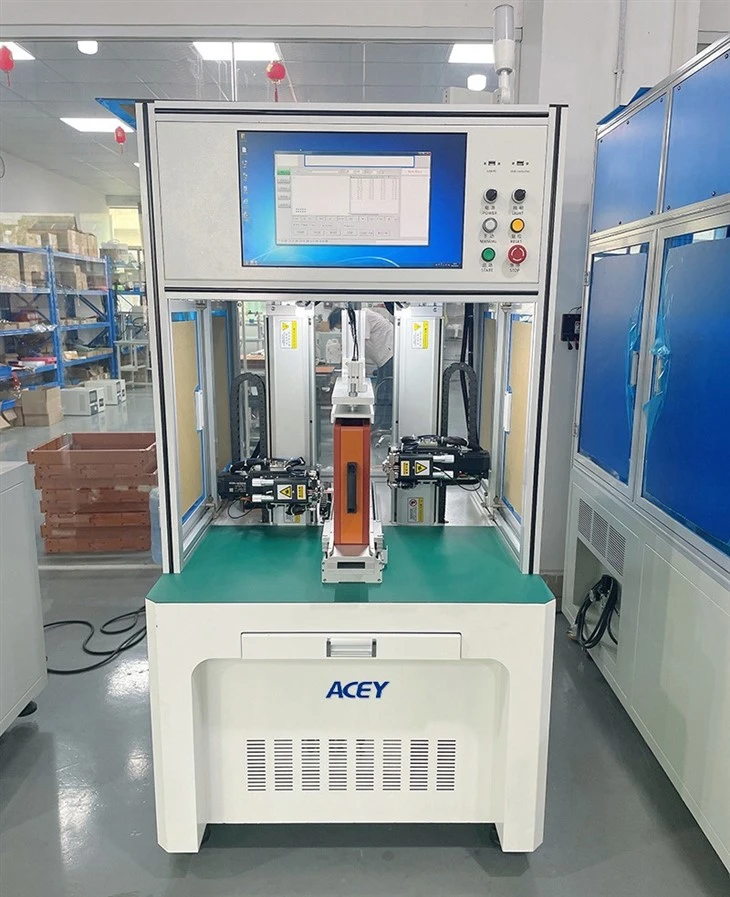

Battery pack Double Sided Pneumatic Battery Spot Welder with pC
Product Description
ACEY-D300A is suitable for battery pack double-sided spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. The operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Features
*Support breakpoint start, automatic start, and manual start.
*Cold solder joint and sealing off alarm.
*Easy program, support matrix, array and point program, can store 100 group parameters.
*Welding needle abrasion alarm.
*Build-in welding current monitor, can display real time welding current.
*Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
lithium battery packs spot welding.
*Can be matched with the production line of lithium battery group.
*Can store dozens process of different battery packs product, switching products without re-setting parameters.
Specification
| Item No. | ACEY-D300A(Pneumatic version) | |
| Y-axis travel | 500mm (customizable) | |
| Z-axis travel | 400mm (dual) (customizable) | |
| Max spot welding speed | 0.5s/ spot (1 hour:about 3,600 pcs 18650 cells) | |
| Motor drive speed | 1000mm/S | |
| Max load electric cores | X direction: 26; Y direction: 18 | |
| Capable file group storage | 100 groups | |
| Operating system | embedded system human-machine interface | |
| Transmission mode | Taiwan precision screw with guide rail | |
| Driving mode | stepper servo motor | |
| Repeat positioning accuracy | ±0.02mm | |
| Dimensions | L1020mm*W910mm*H1770mm | |
| Power | 4000W | |
| Machine weight | 350KG | |
| Max bearing weight of Y-axis | 50KG | |
| Input power supply | three-phase AC 380V/50Hz | |
| Air Source | 0.4-0.6 Mpa | |
| Configuration optional | ||
| Power supplier(DC inverter power) | 5000A/8000A/10000A | |
| Power supplier(Transistor) | 5000A/8000A/10000A | |
Product Details
