Double Sided Battery Spot Welding Machine for Cylindrical Battery Pack
Product Description

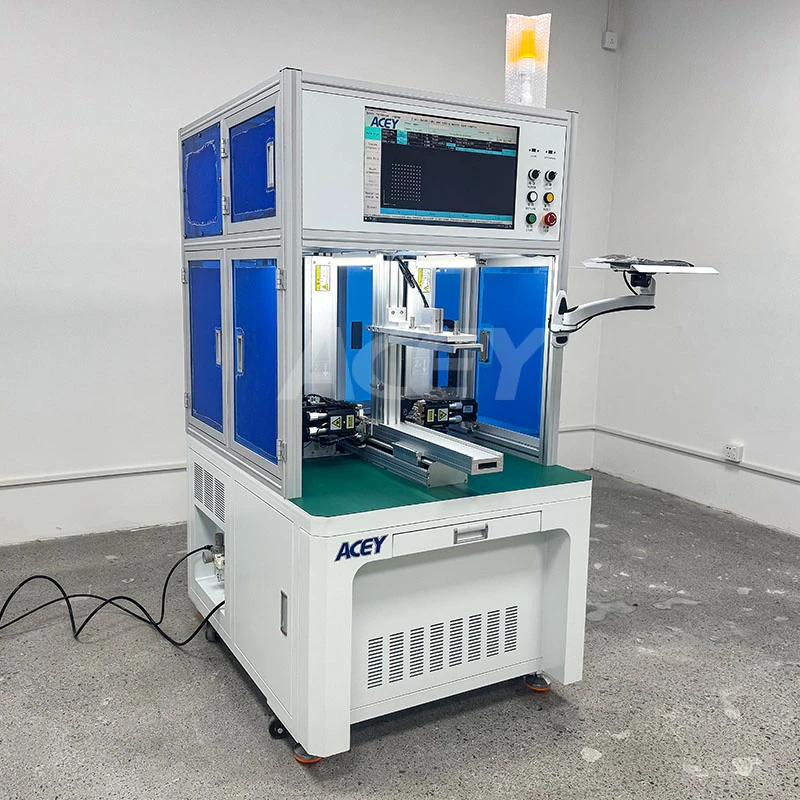

ACEY-D300C Battery Spot Welding Macinhe is designed for automatic double-sided spot welding and assembly of cylindrical battery packs in factory production. It supports 14500, 18650, 21700, 26650 and 32700 cells in various series and parallel configurations, and is suitable for power tool batteries, mobility batteries, energy storage battery packs and electric vehicle batteries. Compared with manual welding, it provides higher welding efficiency and accuracy while making operation and setup easier. Its built-in component design also gives the machine a cleaner and more compact appearance.
Product Features
*Supports 14500, 18650, 21700, 26650 and 32700 cylindrical cells.
*Double-sided welding with 180 degree rotation.
*Supports matrix, array and point welding programs.
*Stores up to 100 groups of welding parameters.
*Real-time welding current monitoring and needle wear alarm.
*Supports automatic start, manual start and breakpoint start.
*Repeat positioning accuracy of 0.02mm.
*Welding current up to 2 x 5000A.
*Maximum welding speed of 0.35s per point.
Specification
| Motion and Positioning | Performance |
| Y Axis Travel | 500mm, Customizable |
| Z Axis Travel | 400mm Double, Customizable |
| Motor Drive Speed | 1000mm/s |
| Rotation Angle | 180 Degrees |
| Repeat Positioning Accuracy | 0.02mm |
| Welding Performance | Capacity |
| Maximum Welding Speed | 0.35s per Point |
| 18650 Welding Capacity | About 5500 Cells per Hour |
| Welding Current | 2 x 5000A |
| Cell Arrangement | 26 Cells in Y Direction, 18 Cells in Z Direction |
| Parameter Storage | Up to 100 Groups |
| Control and Drive Syetem | Details |
| Operating System | Embedded Human Machine Interface |
| Transmission System | Taiwan Precision Screw and Guide Rail |
| Drive System | Stepper Servo Motor |
| Item | Details |
| Machine Dimensions | 1020mm x 910mm x 1770mm |
| Machine Weight | 350kg |
| Maximum Y Axis Load | 50kg |
| Power | 4000W |
| Input Power Supply | Three Phase AC 380V 50Hz |
| Air Source | 0.4 to 0.6MPa |
Product Details
Q: What battery cells can this spot welding machine handle?
A: ACEY-D300C Battery Spot Welding Machine supports 14500, 18650, 21700, 26650 and 32700 cylindrical cells for multi-series and multi-parallel battery pack assembly.
Q: How fast can the ACEY-D300C weld battery packs?
A: ACEY-D300C Battery Spot Welding Machine has a maximum welding speed of 0.35 seconds per point and can weld about 5,500 18650 cells per hour under the specified conditions.
Q: Can the machine handle different battery pack designs?
A: ACEY-D300C Battery Spot Welding Machine supports matrix, array and point welding programs and can store up to 100 groups of parameters for different battery pack products.
