120V 100Charge 100A Discharge Battery Aging Machine With Energy-Feedback Function
Product Description
ACEY-BA120100-10 Battery Aging Machine is specifically designed for battery pack aging, capacity testing, and charge - discharge performance evaluation. This device supports various types of battery packs, such as ternary lithium batteries, lithium iron phosphate batteries, lead - acid batteries, nickel - metal hydride batteries, and nickel - cadmium batteries. It is suitable for battery manufacturing, power battery systems of electric vehicles/hybrid vehicles, and battery module testing. The system features 10 independent channels, supports flexible grouping and independently programmable test conditions, enables real - time data monitoring, and is integrated with the MES system to ensure efficient and traceable battery testing.
Function
- Battery pack cycler aging machine
- Battery pack capacity test
- Battery pack charge/discharge characteristics test
- Battery pack temperature characteristics test
Features
· 10 independent channels, supporting flexible grouping and independently programmable test conditions
· Supporting constant-current (CC), constant - current constant-voltage (CCCV) charging, constant - current discharging, standing, and multi-cycle testing
· Programmable test steps, supporting multi-cycle nesting to meet the requirements of customized test processes
· Soft-start charging and discharging, effectively reducing sudden current changes and minimizing the impact on batteries or connectors
· Comprehensive software and hardware protection functions, including over-voltage, over-current, over - temperature, short-circuit, and reverse-connection protection
· Power failure recovery and data protection contribute to maintaining test continuity after interruptions.
· Real-time monitoring, data recording, curve analysis, and Excel data export support detailed test evaluation.
· Network - based centralized control and MES integration enable remote monitoring and production data management.
· The modular power supply unit design simplifies the maintenance and replacement processes.
Technical parameter
| Parameter | Specification |
|---|---|
| Model | ACEY-BA120100-10 |
| Channels | 10 |
| Channel Operation | Completely independent |
| Charge Voltage Range | 10V-120V |
| Discharge Voltage Range | 10V-120V |
| Maximum Output Current | 100A |
| Minimum Output Current | 100mA |
| Voltage Accuracy | ±(0.05%FS + 0.05%RD) |
| Current Accuracy | ±(0.05%FS + 0.05%RD) |
| Voltage Resolution | 1mV |
| Current Resolution | 1mA |
| Maximum Continuous Power per Channel | 12kW |
| Charge Mode | CC/CCCV |
| Discharge Mode | CD/CP |
| Maximum Cycle Times | 9,999 |
| Data Logging Interval | 5s minimum |
| Connection | Four-wire connection with separate current and voltage lines |
| Battery Connection | OT clamps |
| Input Power Requirement | 30kW, 380V, three-phase four-wire |
| Working Temperature | -10°C to 40°C |
| Working Humidity | 10%–90% |

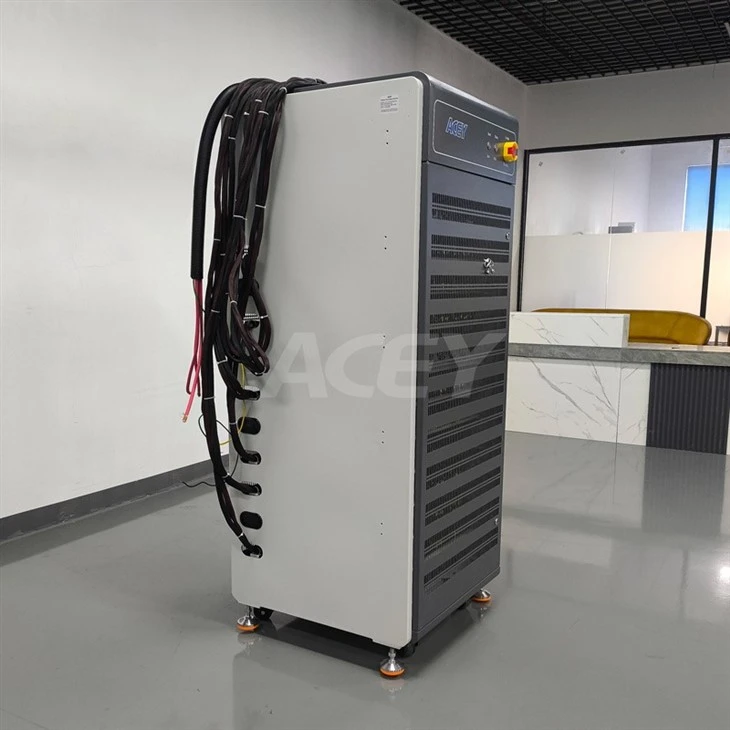

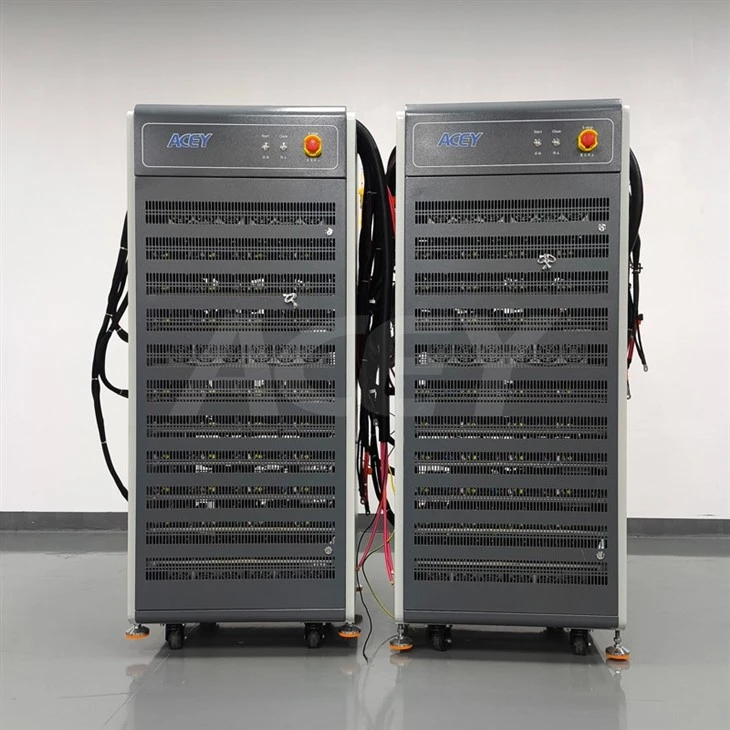

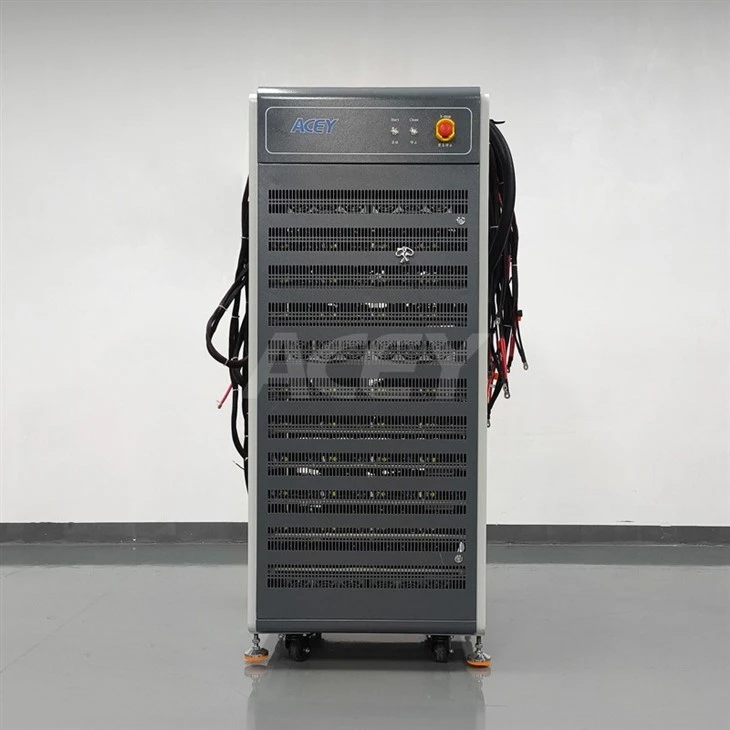

Product Details
FAQ
Q: What types of batteries can this charge and discharge tester test?
A: ACEY-BA120100-10 Battery Aging Machine is suitable for aging and performance testing of ternary lithium, lithium iron phosphate, lead-acid, nickel-metal hydride, nickel-cadmium, and other battery packs. It supports both same-port and separate-port battery packs.
Q: What voltage and current range does the battery aging machine support?
A: ACEY-BA120100-10 Battery Aging Machine supports battery pack testing from 10V to 120V, with adjustable charging and discharging current from 100mA to 100A. It provides 1mV voltage resolution and 1mA current resolution, suitable for battery pack capacity, charge/discharge performance and aging tests.
Q: Can the battery aging machine perform automatic cycle and aging tests?
A: ACEY-BA120100-10 Battery Aging Machine supports programmable charge, discharge, rest and cycle steps, with up to 9,999 cycles and multi-layer cycle nesting. Test conditions such as voltage, current, time and capacity can be set as stop conditions, while test data, curves and cycle performance can be recorded and exported for analysis.
