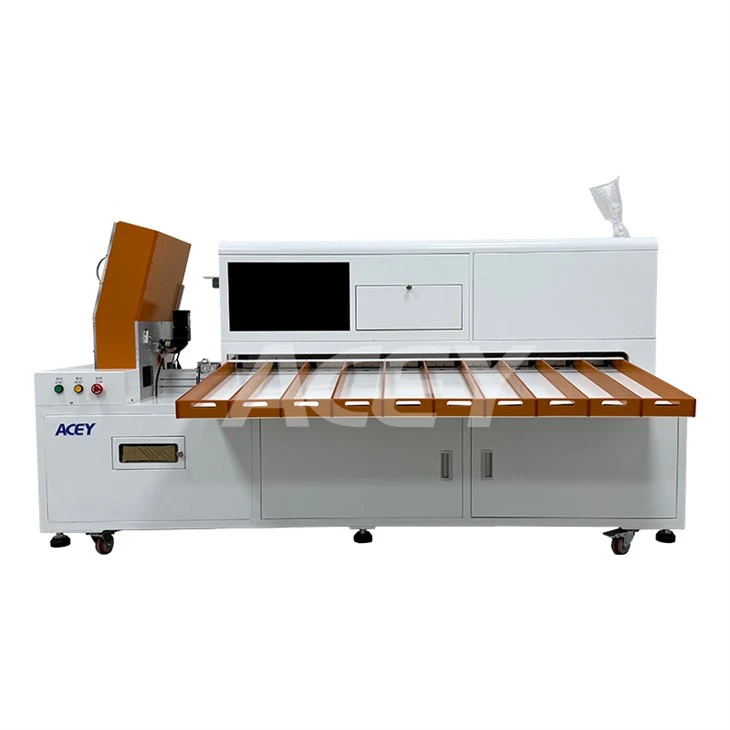

10 Channels Battery Sorter for 32140 33140
Product Description

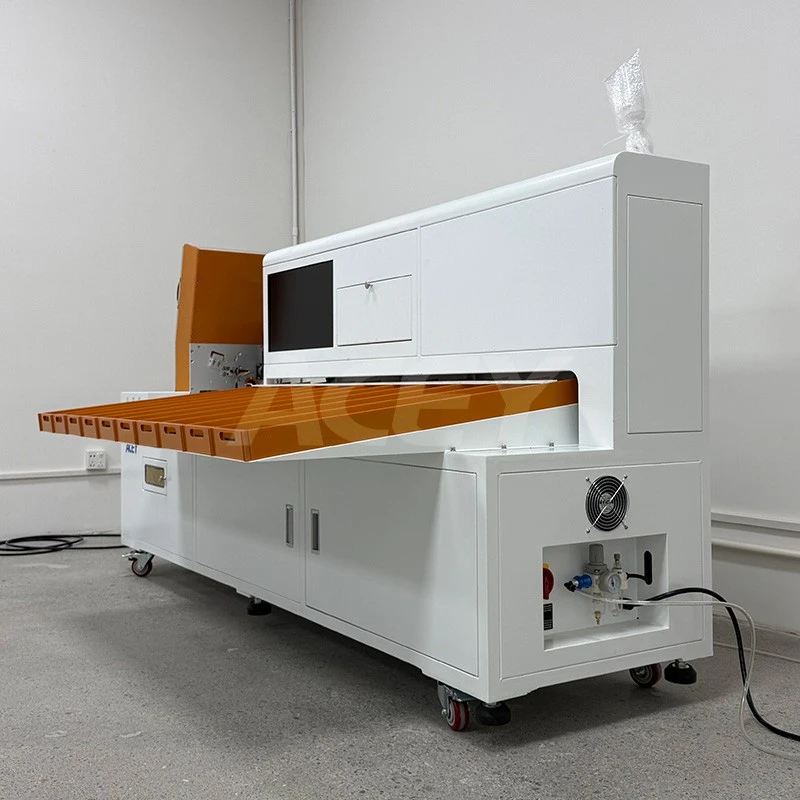

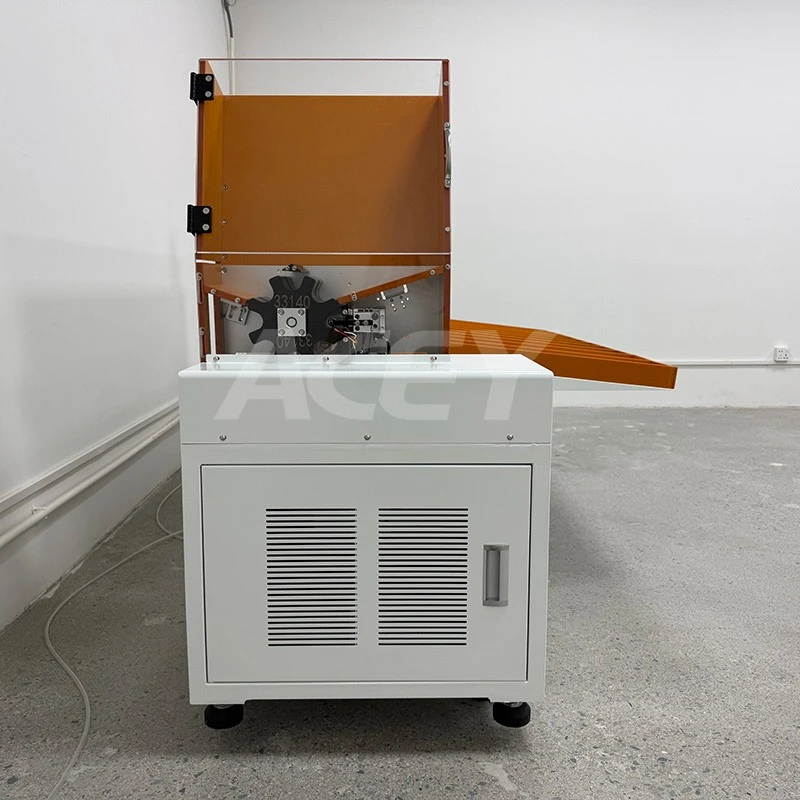

ACEY-PS10 Lithium Battery Sorting Machine is an automatic cylindrical battery sorting machine designed for 32140 and 33140 large cylindrical battery cells. It measures DC voltage and AC internal resistance, then automatically sorts cells into 9 sorting and matching groups and 1 unqualified product channel according to preset criteria. With a sorting speed of 40–50 cells per minute, touchscreen operation, computer-based control, and intelligent one-button setting, it supports efficient battery cell grading and matching for battery pack production.
Products Description
- 10-Channel Sorting Configuration: Provides 9 sorting and matching channels and 1 NG channel for separating qualified and unqualified cells.
- Voltage and Internal Resistance Testing: Measures DC voltage and AC internal resistance to support battery cell grading and matching.
- High-Speed Sorting: Achieves a sorting speed of 40–50 cells per minute for efficient production workflows.
- Intelligent One-Button Setting: Simplifies sorting parameter configuration for battery pack production.
- Touchscreen and Computer Control: Provides convenient operation and sorting parameter management.
Product Features
1. Automatic Voltage and Internal Resistance Sorting: Automatically sorts cylindrical battery cells according to preset DC voltage and AC internal resistance criteria, reducing manual classification errors.
2. 10-Channel Sorting Configuration: Provides 9 sorting and matching group channels and 1 unqualified product channel for flexible battery grading.
3. Compatibility with Large Cylindrical Cells: Designed for 32140 and 33140 cylindrical battery cells used in battery pack production.
4. High-Speed Sorting Performance: Supports a sorting speed of 40–50 cells per minute to improve battery classification efficiency.
5. Intelligent One-Button Setting: Simplifies sorting parameter configuration with an intelligent setting function designed for battery pack production.
6. Touchscreen Operation: Features a touchscreen interface for convenient parameter adjustment and equipment operation.
7. Computer-Based Control: Integrates computer control to support sorting parameter management and testing operations.
8. High-Precision Electrical Measurement: Uses DC voltage and AC internal resistance measurements to support battery cell grading and matching.
9. Flexible Sorting Criteria: Allows sorting values to be configured for individual channels according to production requirements.
10. Operator and Product Safety: Incorporates safety-oriented design considerations to help protect operators and battery cells during sorting operations.
Main technical parameters
|
Equipment efficiency |
10~12PPM |
|
Equipment utilization |
≥95% |
|
Number of sorting channels |
10(9 OK channels, 1 NG channel) |
|
Applicable cell dimensions |
Length: 100-300mm width 20-85mm height: 80-300mm |
|
Control system |
PC Industrial Computer (Embedded system) |
|
Input power consumption |
1KW |
|
Equipment power |
2KW |
|
Input voltage |
AC220V/50HZ |
|
Compressed air source |
≥0.6Mpa |
|
Displayer |
21.5-inch Philips displayer |
|
Equipment Appearance Reference dimensions |
L*W*H=1920*1600*1600mm |
|
Weight |
350KG |
Product Details
FAQ
Q: What battery cell sizes are compatible with this sorting machine?
A: ACEY-AS10SP-33140 Lithium Battery Sorting Machine is designed for 32140 and 33140 large cylindrical battery cells used in battery pack production.
Q: What size of prismatic cells can the machine sort?
A: ACEY-AS10SP-33140 Lithium Battery Sorting Machine features 10 channels, including 9 sorting and matching group channels and 1 unqualified product channel. Each sorting channel can be configured with individual sorting values according to production requirements.
Q: How does the 10-channel Lithium Battery Sorting Machine sort cells?
A: ACEY-AS10SP-33140 Lithium Battery Sorting Machine features 10 channels, including 9 sorting and matching group channels and 1 unqualified product channel. Each sorting channel can be configured with individual sorting values according to production requirements.
