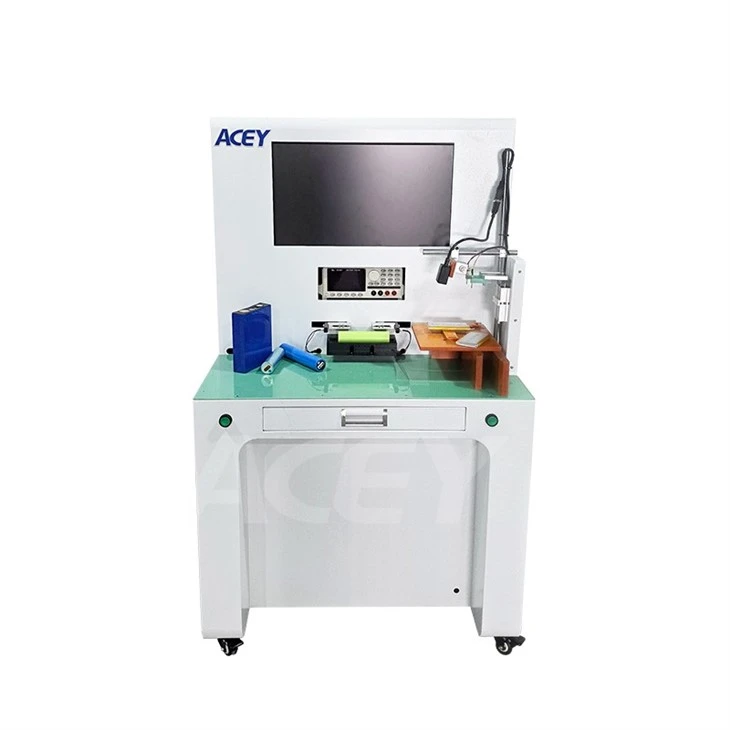

3 in 1 Manual Battery Sorting Machine

Item Name:3 in 1 Manual Battery Sorting Machine
Item No.: ACEY-MS03
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance

3 in 1 Manual Battery Sorting Machine for Prismatic Polymer and Cylindrical Battery

Product Description

ACEY-MS03 Manual Battery Sorting Machine, Manually place the prismatic or cylindrical lithium battery into the test position. When the manual presses the squeeze start button, the prismatic or cylindrical test cylinder presses down/clamps, and the internal resistance and internal pressure are collected and recorded by the internal resistance tester. The display shows the gear position. After the test is completed, the prismatic or cylindrical test cylinder rises/releases, and the manual removes the prismatic or cylindrical lithium battery.

Main technical parameters

1. Applicable battery types: 280Ah prismatic lithium batteries, cylindrical lithium batteries, and polymer cells.

2. Compatible module dimensions: Prismatic: Length 80-300mm, Thickness 10-100mm, Height 80-300mm; Cylindrical: Diameter 21-50mm, Length 65-200mm; Polymer: Width 30-300mm, Length 50-500mm.

3. Equipment control method: PLC control.

4. Dual-hand start for enhanced safety.

5. 10 channel settings available for better cost-effectiveness.

6. Dimension: L800mm*W750mm*H1302mm.

7. Weight: 100KG.

Equipment Environmental Requirements

1.Ambient Temperature: 5°C-35°C.

2.Humidity: 20%-90%.

3.Air Pressure: 0.5-0.6 MPa.

4.Power Supply Voltage: 220V, 50Hz/60Hz.

5.Surface Load Ratio: ≤200kg/m².

6.Grounding Type: Direct Grounding.

7.Site: Free from pollution and strong electromagnetic interference.

8.Installation Environment: Flat, free from vibration and shock.

9.Equipment Noise ≤80dB.

Product Details

FAQ

Q: What types of battery cells can ACEY-MS03 Battery Manual Sorting Machine handle?

A: ACEY-MS03 Manual Battery Sorting Machine supports 280Ah prismatic lithium batteries, cylindrical lithium batteries, and polymer cells, providing one machine for three cell formats.

Q: What does ACEY-MS03 Battery Manual Sorting Machine test during cell sorting?

A: ACEY-MS03 Manual Battery Sorting Machine collects and records internal resistance and internal pressure through an internal resistance tester, while displaying sorting gear information after testing.

Q: What battery cell sizes are compatible with ACEY-MS03 Battery Manual Sorting Machine?

A: ACEY-MS03 Manual Battery Sorting Machine supports prismatic cells measuring 80–300 mm in length, 10–100 mm in thickness, and 80–300 mm in height; cylindrical cells with 21–50 mm diameter and 65–200 mm length; and polymer cells with 30–300 mm width and 50–500 mm length.
