100V 60 Charge 60A Discharge Battery Aging Machine With Energy-Feedback Function
Product Description

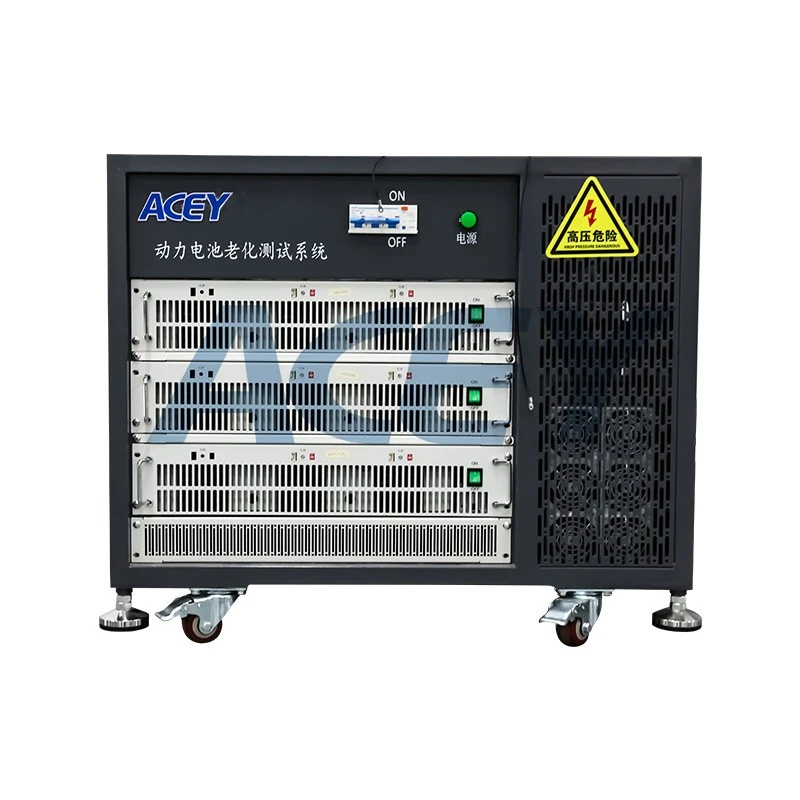

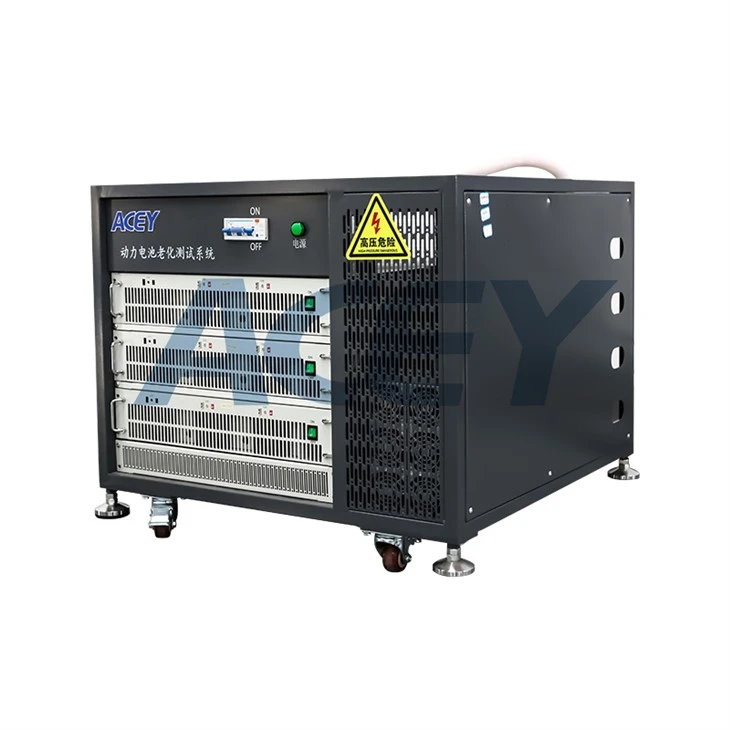

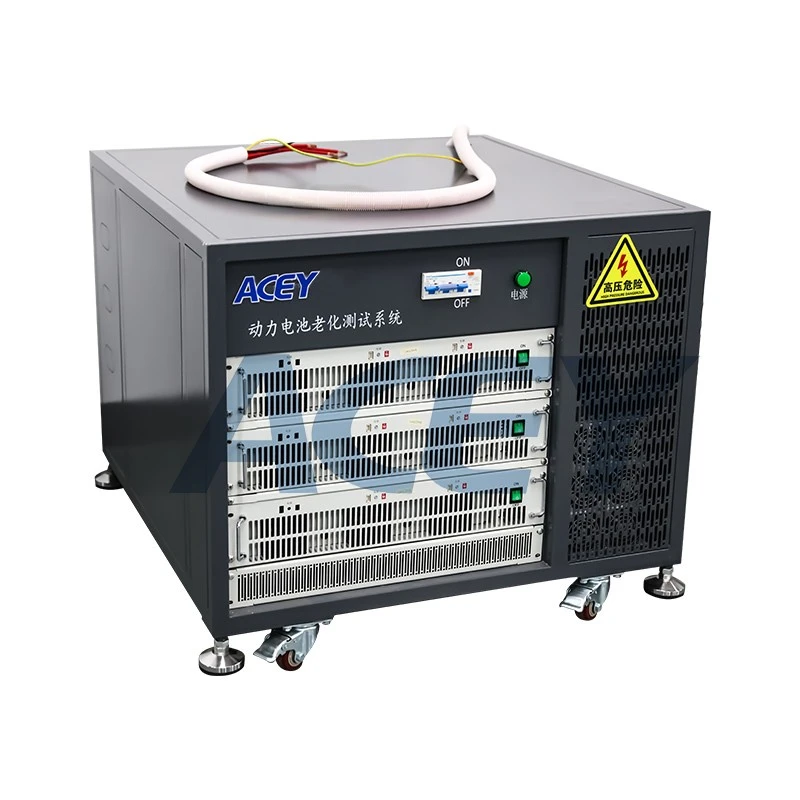

ACEY-BA10060-8 Battery Aging Machine is an 8-channel energy feedback battery aging and charge-discharge testing machine designed for battery pack aging, capacity verification, and performance evaluation. It supports battery packs with a charging voltage range of 0–100V, a discharging voltage range of 10–100V, and adjustable charge and discharge currents up to 60A per channel, with a maximum continuous power of 6000W per channel. The system supports CCCV and CC charging, CC and CP discharge modes, programmable multi-step cycling, real-time data monitoring, and optional MES integration. It is suitable for testing lithium-ion, lithium iron phosphate, lead-acid, NiMH, and NiCd battery packs.
Function
- Battery Aging and Cycling Test: Performs programmable charge-discharge cycles to evaluate battery pack performance.
- Battery Capacity Test: Measures charge and discharge capacity for battery pack verification.
- Charge-Discharge Characteristic Test: Records voltage, current, capacity, energy, and other electrical parameters.
- Programmable Test Control: Supports CC and CCCV charging, CC and CP discharging, resting, stopping, and customized test sequences.
- Multi-Level Cycle Testing: Supports up to 9999 cycles and nested cycle programs.
- Test Data Analysis: Displays charge-discharge curves, voltage-current characteristics, capacity, energy, efficiency, and cycle data.
- Data Export and Reporting: Exports test data to Excel and chart files for further analysis.
- Network Monitoring and MES Communication: Supports centralized computer control, remote monitoring, and test data uploading to an MES system.
Features
- 8 Independent Channels: Each channel supports independent charge-discharge testing and parameter settings.
- Energy Feedback: Returns recovered discharge energy to the power system to help reduce energy consumption.
- Wide Voltage and Current Range: Supports 0–100V charging, 10–100V discharging, and adjustable current from 100mA to 60A.
- High-Power Output: Provides up to 6000W continuous power per channel.
- High-Precision Measurement: Voltage and current accuracy of ±(0.05% RD + 0.05% FS).
- Soft-Start Control: Reduces current surges during startup and CC-to-CV transitions.
- Comprehensive Safety Protection: Includes overvoltage, overcurrent, short-circuit, reverse-polarity, and overtemperature protection.
- Modular Design: Simplifies equipment maintenance and component replacement.
- Four-Wire Connection: Separates current and voltage sensing lines for electrical measurement.
Technical parameter
|
Item |
Function requirement |
|
|
Channel |
8 |
|
|
Action Mode |
Completely independent |
|
|
Main channel work mode |
Charging: constant current and constant voltage charging CCCV.&CC Discharge: constant current discharge CD.& CP Resting, stopping |
|
|
Main channel test abort condition |
Time, voltage, current, capacity, etc |
|
|
Voltage of main channel |
Votage range of charge |
0V～100V |
|
Votage range of discharge |
10V～100V |
|
|
Accuracy |
±(0.05%RD+0.05%FS) |
|
|
Resolution |
1mV |
|
|
Current of main channel |
Maximum output current |
Discharge & Charge 60A |
|
Minimum output current |
100mA |
|
|
Accuracy |
±(0.05%RD+0.05%FS) |
|
|
Resolution |
1mA |
|
|
Power |
Output |
Single channel continuous operation maximum power 6000W |
|
Auxiliary channel parameter cut-off function |
The main channel step can be set to stop or switch when the auxiliary channel signal reaches certain conditions. |
|
Product Details
FAQ
Q: What types of batteries can this machine test?
A: ACEY-BA10060-8 Battery Aging Machine supports aging and charge-discharge testing for lithium-ion, lithium iron phosphate, lead-acid, NiMH, and NiCd battery packs.
Q: What are the voltage and current ranges of this machine?
A: ACEY-BA10060-8 Battery Aging Machine supports a charging voltage range of 0–100V, a discharging voltage range of 10–100V, and adjustable charge and discharge currents from 100mA to 60A per channel, with up to 6000W continuous power per channel.
Q: How does the energy feedback function benefit battery testing?
A: ACEY-BA10060-8 Battery Aging Machine uses energy feedback technology to return recovered discharge energy to the power system, helping reduce energy consumption during battery aging and charge-discharge cycle testing.
