Energy Storage Lithium Battery Automatic Assembly Line
Product Description
The automatic lithium battery pack assembly line is designed for energy storage battery assembly and is suitable for assembling prismatic lithium battery packs of different sizes and specifications.
Process Flow
- Manual loading
- Automatic code scanning & OCV testing
- Automatic NG discharge
- Battery cell caching
- Manual stacking & bundling
- Manual module handling into boxes
- Manual code scanning & labeling
- Polarity detection & terminal addressing
- Terminal laser cleaning
- Manual connection piece placement
- Laser welding

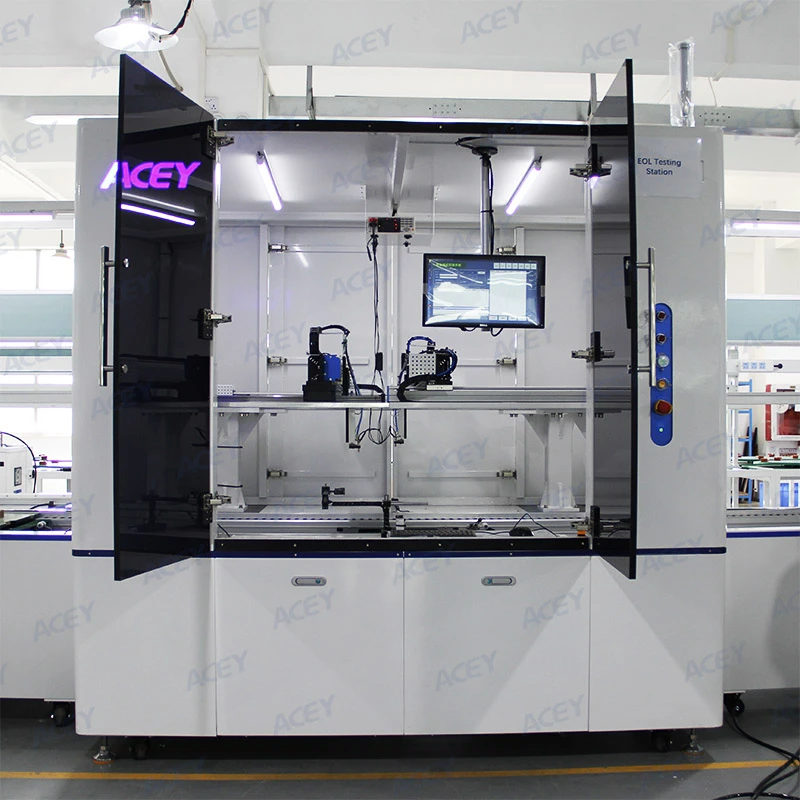

- EOL testing
- Cantilever module transfer
- Manual pack assembly
- Hoisting off the line
- Pack tooling tray manual lifting car reflow assembly
Data collection & connectivity:
Each station collects data, with reserved ports for MES system integration.
Production Line Layout
-Whole line
-Front view
-Top view
Products Details
